Ahem. I had an idea for punches. If you've messed with the things, you know that, especially in smaller sizes, when you have a stuck or very tight pin they have a bad habit of bending. And you can never get them actually straight again. So I thought of making the actual punch part replaceable. I won't have a tailstock spindle and drill chuck for the lathe for a while, but a thought occurred: face-off the ends of the body so they're square, then on one end use a right-cutting bit angled close to straight-in to cut a small hole; that way you'd have the center marked to start the bit*. So I tried it, and it worked.

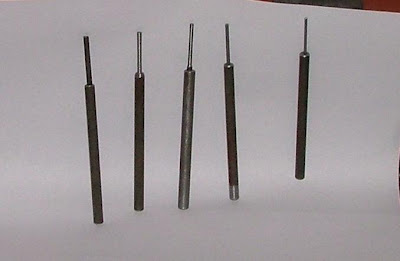

From 1/8" down to 1/16". The first three are some 1/8" stock I had, 2nd and 3rd turned down on the drill press with a file(too small for the chuck on the lathe), 4th and 5th are music wire. Was able to drill the holes just undersize enough on four to make the pin a drive-fit, the last was a touch loose so used a drop of threadlocker. So if I damage one, I should be able to pull it and replace it.

If I could find a tap and some screws small enough(these bodies are 1/4") I could drill and tap from the side and use the setscrews to hold the pins. Maybe bigger bodies.

It's nice when something works.


*No, it's not absolutely required to have them dead-centered as long as they're straight, but dammit, I wanted them centered.
